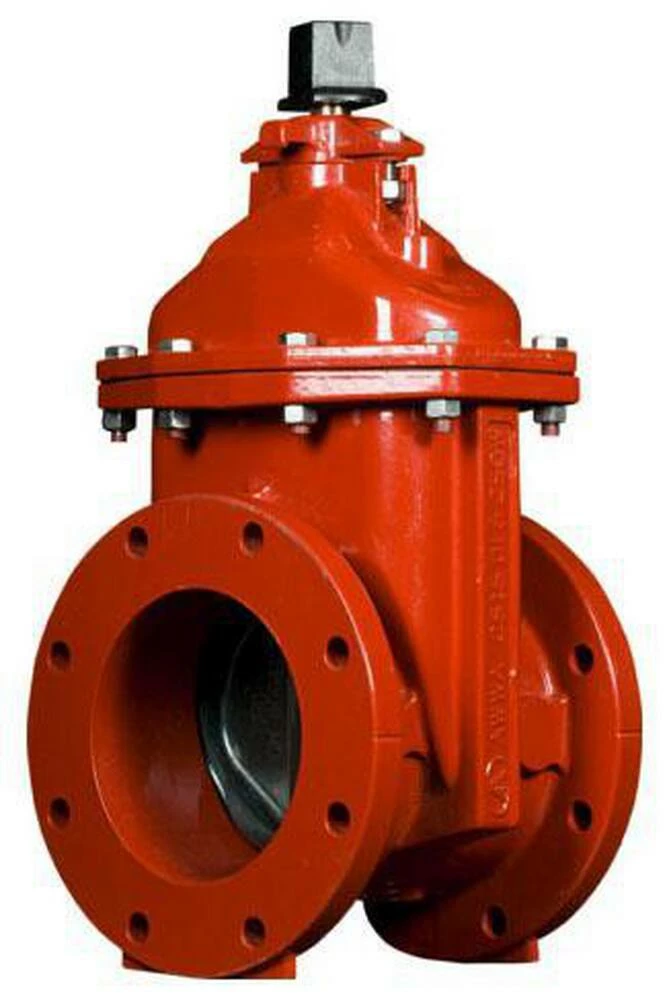

Name: Flash Sale ✨ American Flow Control 2500 Series 12 in. Flanged Ductile Iron Open 316 Left Resilient Wedge Gate Valve 🔔 | Cheap American Flow Control Store
SKU: 4491660
Price: 88.99 USD
Availability: InStock

Sale!

Original price was: $233.92.Current price is: $88.99.

SKU: 4491660 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Open left direction

Triple O-ring stem seals

Thrust washers

Smooth waterway design

Sealing the lubrication chamber is a series of three O-ring stem seals. the O-rings help to isolate the lubrication chamber

ANSI Specifications	ANSI 372, ANSI 61, ANSI A21.10, ANSI B2.1, ANSI C515, ANSI C550
NSF Specifications	NSF 372, NSF 61
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	12 in
Valve Seat Material	Metal
Valve Port Opening	Valve Stem
Valve Operator	Operating Nut
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Open Left
Valve Body Material	Ductile Iron
UL Listed	Yes
Recommended Valve Application	Water
Pressure Class	125#
NSF Certified	Yes
ASME Specifications	ASME B16.1
Maximum Pressure	250 psig
Material	Ductile Iron
MSS Specifications	MSS SP-113, MSS SP-45
Length	14 in
FM Approved	Yes
End Connections	Flanged x Flanged
End Connection 2	Flanged
End Connection 1	Flanged
Ductile Iron Pipe Type	Ductile Iron Flanged Pipe
Collection	2500 Series
Coating	Fusion Bonded Epoxy
Application	Fire, Irrigation, Potable Water, Sewage
AWWA Specifications	AWWA C-110, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-536, ASTM B-584, ASTM B-763
Waterworks Application	Water
