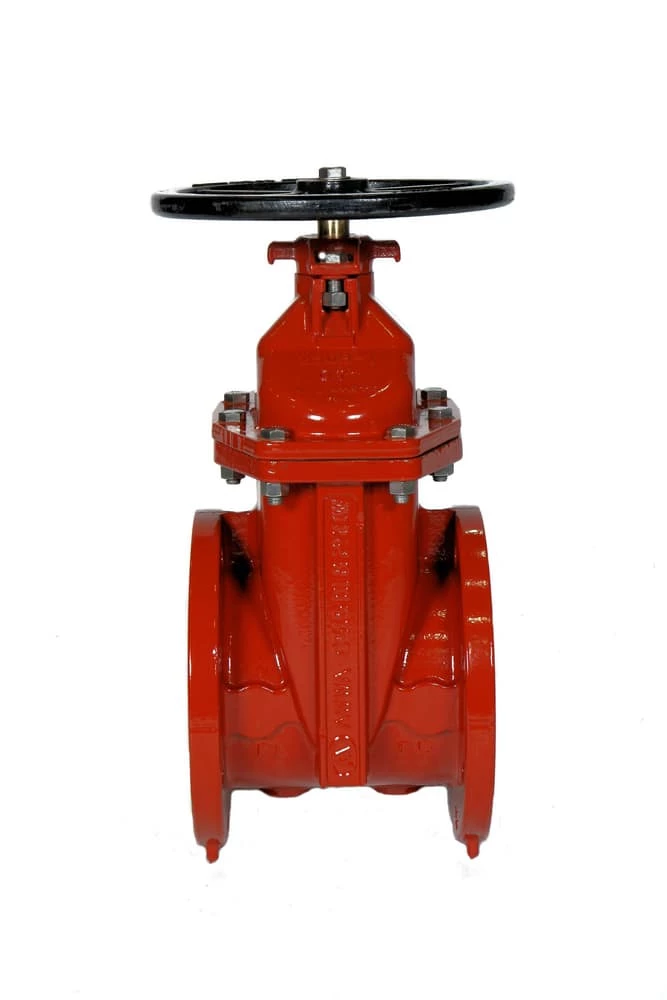

Budget 🌟 American Flow Control 2500 Series 12 in. Flanged Ductile Iron Open Left Resilient Wedge Gate Valve 🛒

Original price was: $217.31.Current price is: $91.99.

SKU: 1755654 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Thrust washers

Fusion bonded epoxy coating

4″ thru 66″ valves are Certified to ANSI/NSF Standard 61

Designed for use in drinking water, sewage, fire protection systems as well as irrigation and backflow control

Ductile iron body, bonnet, wedge, operating nut and stuffing box

Products sold in select areas only. Please contact your local branch for availability in your area

ANSI Specifications	ANSI 372, ANSI 61, ANSI A21.10, ANSI B2.1, ANSI C515, ANSI C550
NSF Certified	Yes
Valve Stem	Non-rising
Valve Size	12 in
Valve Seat Material	Metal
Valve Port Opening	Valve Stem
Valve Operator	Handwheel
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Open Left
UL Listed	Yes
Recommended Valve Application	Water
Pressure Class	125#
NSF Specifications	NSF 372, NSF 61
Maximum Pressure	250 psig
ASME Specifications	ASME B16.1, ASME B16.4
Material	Ductile Iron
MSS Specifications	MSS SP-113, MSS SP-45
Length	15 in
FM Approved	Yes
End Connections	Flanged x Flanged
End Connection 2	Flanged
End Connection 1	Flanged
Ductile Iron Pipe Type	Ductile Iron Flanged Pipe
Collection	2500 Series
Coating	Fusion Bonded Epoxy
Application	Fire, Irrigation, Potable Water, Sewage
AWWA Specifications	AWWA C-110, AWWA C-111, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-536, ASTM D-1785, ASTM D-2000, ASTM D-2241
Valve Type	Resilient Wedge Gate Valve
