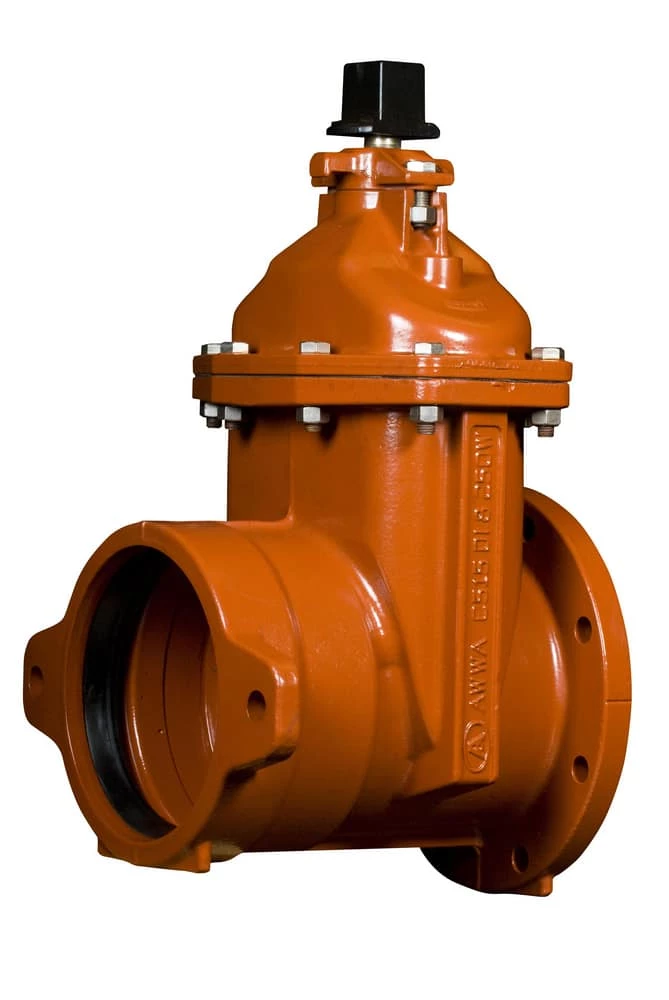

Name: Brand new 🔔 American Flow Control 2500 Series 12 in. Flanged x Tyton Joint Ductile Iron Open Left Resilient Wedge Gate Valve 💯 | Cheap American Flow Control Store
SKU: 1855989
Price: 98.99 USD
Availability: InStock

Sale!

Original price was: $251.54.Current price is: $98.99.

SKU: 1855989 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

250 psig AWWA, UL and FM pressure rating in applicable configurations

UL listed-FM approved configurations

Seat tested at 375 psig

Shell tested at 500 psig

Fusion-bonded epoxy coating complies with ANSI/AWWA C550

Triple O-ring stem seals

Thrust washers

Smooth larger than nominal waterway

Leak-tight closure

Complies with ANSI/AWWA C515

ANSI Specifications	ANSI 372, ANSI 61, ANSI A21.10, ANSI B2.1, ANSI C515, ANSI C550
NSF Certified	Yes
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	12 in
Valve Seat Material	Metal
Valve Port Opening	Valve Stem
Valve Operator	Operating Nut
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Open Left
UL Listed	Yes
Recommended Valve Application	Backflow Prevention, Fire, Irrigation, Potable Water, Sewage
Pressure Class	125#
NSF Specifications	NSF 372, NSF 61
Maximum Pressure	500 psig
ASME Specifications	ASME B16.1, ASME B16.4
Material	Ductile Iron
MSS Specifications	MSS SP-113, MSS SP-45
Length	16-22/25 in
High Pressure	250
FM Approved	Yes
End Connections	Flanged x Tyton Joint
End Connection 2	Tyton Joint
End Connection 1	Flanged
Ductile Iron Pipe Type	Ductile Iron Flanged Pipe
Collection	2500 Series
Coating	Fusion Bonded Epoxy
AWWA Specifications	AWWA C-110, AWWA C-111, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-536, ASTM B-584, ASTM B-763, ASTM D-1785, ASTM D-2000, ASTM D-2241
Waterworks Application	Water
