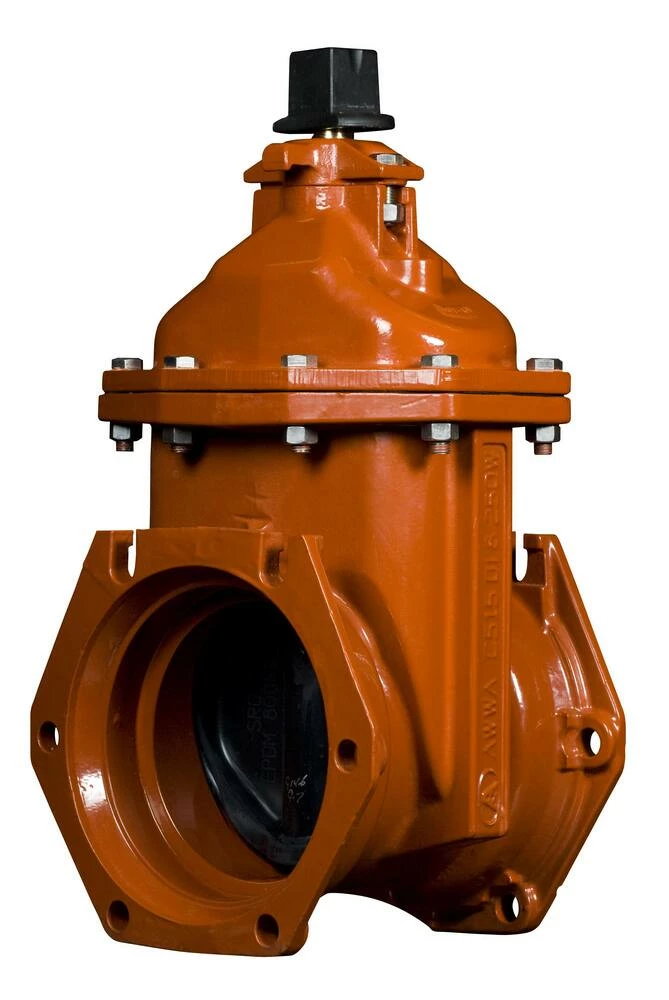

Cheapest 🌟 American Flow Control 2500 Series 12 in. Mechanical Joint Ductile Iron Open Right Resilient Wedge Gate Valve 🎁

Original price was: $258.45.Current price is: $92.99.

SKU: 3077193 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron, Stainless Steel

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

All ductile iron construction

Fully complies with ANSI/AWWA C515 and is rated at 250 psig

UL listed and FM approved at 250 psig, in applicable configurations

Fusion-bonded epoxy coating complies with ANSI/AWWA C550

Triple O-ring stem seals

Thrust washers

Smooth waterway design

100% leak-tight closure

ANSI Specifications	ANSI 372, ANSI 61, ANSI A21.11, ANSI B18.2.1, ANSI C111, ANSI C515, ANSI C550
NSF Certified	Yes
Waterworks Application	Water
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	12 in
Valve Seat Material	Metal
Valve Port Opening	Valve Stem
Valve Operator	Operating Nut
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Open Right
UL Listed	Yes
Recommended Valve Application	Drinking Water, Fire Protection, Irrigation, Sewage
Pressure Class	125#
NSF Specifications	NSF 372, NSF 61
Maximum Pressure	500 psig
ASME Specifications	ASME B16.1, ASME B16.4
Material Type	316
Material	Ductile Iron, Stainless Steel
MSS Specifications	MSS SP-113, MSS SP-45
Length	13-1/2 in
High Pressure	250
FM Approved	Yes
End Connections	Mechanical Joint
End Connection 2	Mechanical Joint
End Connection 1	Mechanical Joint
Ductile Iron Pipe Type	Ductile Iron Mechanical Joint Pipe
Collection	2500 Series
Coating	Fusion Bonded Epoxy
AWWA Specifications	AWWA A-21.11, AWWA C-111, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-126
Weight	331
