Name: Discount 🛒 American Flow Control 2500 Series 14 in. Flanged Ductile Iron Open Left Resilient Wedge Gate Valve with Operating Nut ✨ | Cheap American Flow Control Store
SKU: 2228849
Price: 94.99 USD
Availability: InStock

Sale!

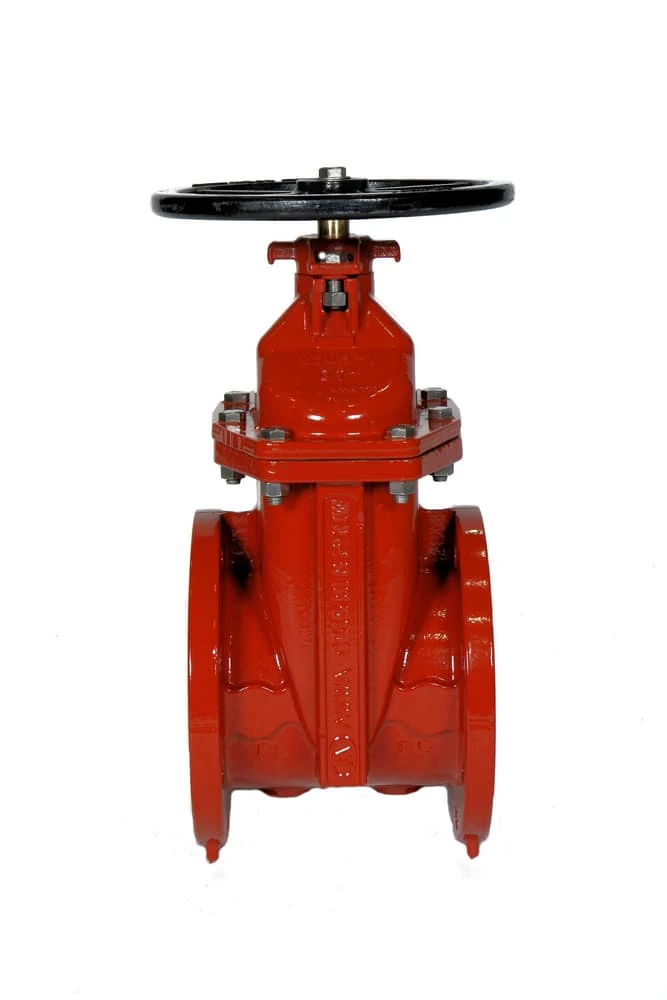

Discount 🛒 American Flow Control 2500 Series 14 in. Flanged Ductile Iron Open Left Resilient Wedge Gate Valve with Operating Nut ✨

Original price was: $158.65.Current price is: $94.99.

SKU: 2228849 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Ductile iron construction

250 psig rating

UL listed and FM approved in applicable configurations

Certified to NSF/ANSI/CAN 61 and NSF/ANSI/CAN 372

Triple O-ring stem seals

Epoxy coating inside and out

Thrust washers

Lifting devices

Zero leakage

Dual sealing body to bonnet gaskets

ANSI Specifications	ANSI 372, ANSI 61, ANSI A21.10, ANSI B2.1, ANSI C515, ANSI C550
NSF Specifications	NSF 372, NSF 61
Waterworks Application	Water
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	14 in
Valve Seat Material	Metal
Valve Port Opening	Valve Stem
Valve Operator	Operating Nut
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Open Left
UL Listed	Yes
Recommended Valve Application	Fire, Irrigation, Potable Water, Sewage
Pressure Class	125#
NSF Certified	Yes
ASME Specifications	ASME B16.1 Class 125
Maximum Pressure	500 psig
Material	Ductile Iron
MSS Specifications	MSS SP-113, MSS SP-45
Length	15 in
High Pressure	250
FM Approved	Yes
End Connections	Flanged
End Connection 2	Flanged
End Connection 1	Flanged
Ductile Iron Pipe Type	Ductile Iron Flanged Pipe
Collection	2500 Series
Coating	Fusion Bonded Epoxy
AWWA Specifications	AWWA C-110, AWWA C-111, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-536, ASTM D-1785, ASTM D-2000, ASTM D-2241
Weight	735
