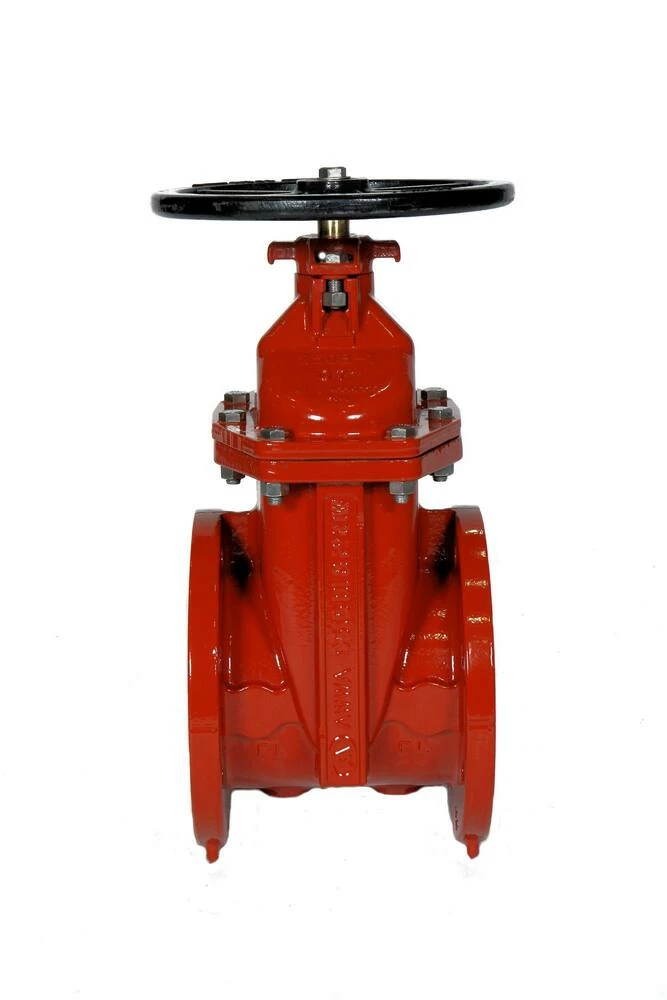

Discount 🎁 American Flow Control 2500 Series 16 in. Flanged Ductile Iron Open 316 Left Resilient Wedge Gate Valve 🛒

Original price was: $109.06.Current price is: $76.34.

SKU: 4491642 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Open left direction

Thrust washers

Lifting device

Zero leakage

Dual sealing body to bonnet gasket

EPDM encapsulated ductile iron wedge with polymer guide cover

Sealing the lubrication chamber is a series of O-Ring stem seals

A fusion-bonded epoxy coating is electrostically applied to the interior and exterior of the valve body to help ensure corrosion resistance for a long service life

Thrust washers are located above and below the stem collar to reduce operating input torque and assist in trouble-free operation of the valve

ANSI Specifications	ANSI A21.10
Pressure Class	125#
Waterworks Application	Water
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	16 in
Valve Seat Material	Metal
Valve Port Opening	Valve Stem
Valve Operator	Operating Nut
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Open Left
Valve Body Material	Ductile Iron
UL Listed	Yes
Recommended Valve Application	Water
NSF Specifications	NSF 372, NSF 61
ASME Specifications	ASME B16.1
NSF Certified	Yes
Maximum Pressure	250 psig
Material	Ductile Iron
MSS Specifications	MSS SP-113, MSS SP-45
FM Approved	Yes
End Connections	Flanged x Flanged
End Connection 2	Flanged
End Connection 1	Flanged
Ductile Iron Pipe Type	Ductile Iron Flanged Pipe
Collection	2500 Series
Coating	Fusion Bonded Epoxy
Application	Fire, Irrigation, Potable Water, Sewage
AWWA Specifications	AWWA C-110, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-536, ASTM B-584, ASTM B-763
Weight	735
