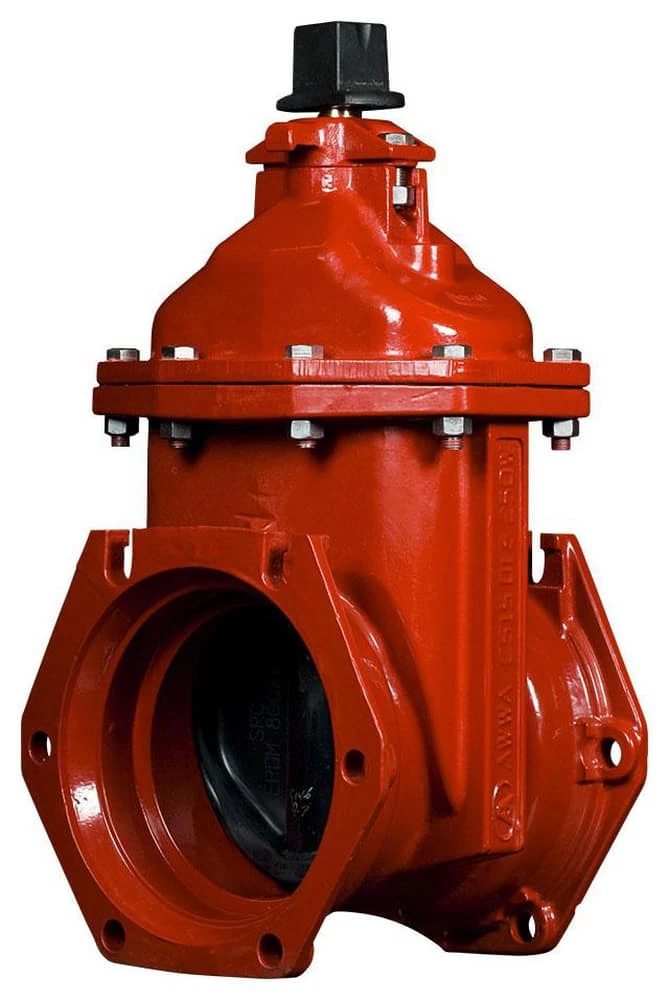

Name: Hot Sale 🛒 American Flow Control 2500 Series 2 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve 🌟 | Cheap American Flow Control Store
SKU: 1607432
Price: 70.67 USD
Availability: InStock

Sale!

Original price was: $100.95.Current price is: $70.67.

SKU: 1607432 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Open left direction

Gate valve is designed for use in drinking water, sewage and fire protection systems as well as irrigation and backflow control systems

Thrust washers

Smooth waterway design

Thrust washers are located above and below the stem collar ensuring trouble-free operation of the valve

The stuffing box is constructed of high strength ductile iron with integral lifting lugs on most sizes. Lifting lugs allow the valve to be lifted safely, without risk of the valve falling or damaging the valve by lifting from the operating nut

The O-rings are reusable, which reduces downtime during any needed repair

ANSI Specifications	ANSI 372, ANSI 61, ANSI A21.11, ANSI A21.53, ANSI C515, ANSI C550
NSF Certified	Yes
Valve Stem	Non-rising
Valve Size	2 in
Valve Seat Material	Metal
Valve Port Opening	Valve Stem
Valve Operator	Operating Nut
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Open Left
UL Listed	Yes
Recommended Valve Application	Water
Pressure Class	125#
NSF Specifications	NSF 372, NSF 61
Maximum Pressure	250 psig
ASME Specifications	ASME B16.1, ASME B16.4
Material	Ductile Iron
MSS Specifications	MSS SP-113, MSS SP-45
Length	7-3/4 in
FM Approved	Yes
End Connections	Mechanical Joint
End Connection 2	Mechanical Joint
End Connection 1	Mechanical Joint
Ductile Iron Pipe Type	Ductile Iron Mechanical Joint Pipe
Collection	2500 Series
Coating	Fusion Bonded Epoxy
Application	Fire, Irrigation, Potable Water, Sewage
AWWA Specifications	AWWA C-111, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-536, ASTM B-584, ASTM B-763
Valve Type	Resilient Wedge Gate Valve
