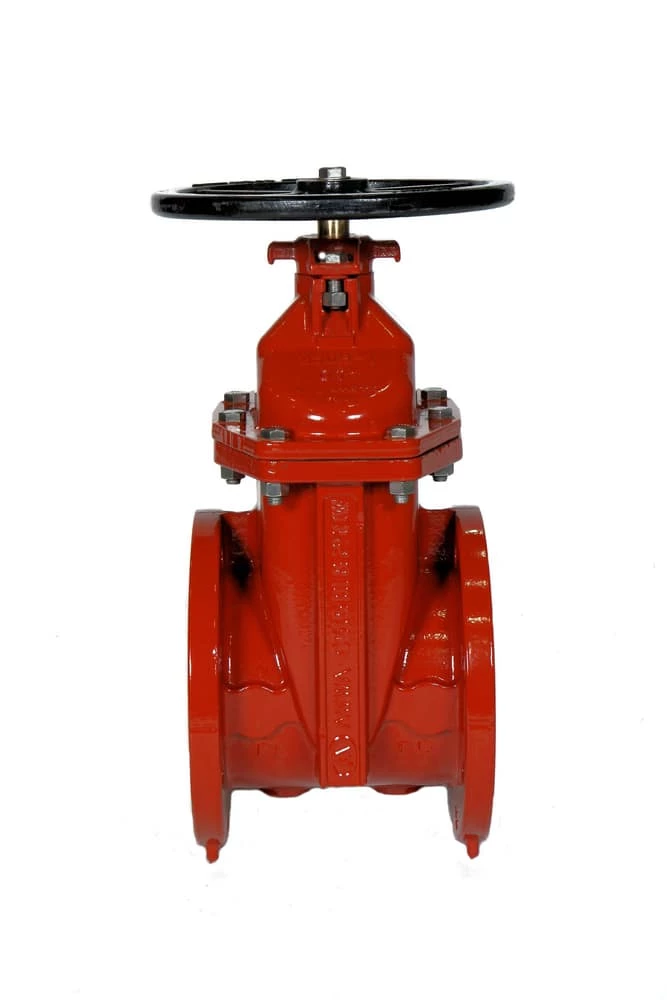

Discount 🥰 American Flow Control 2500 Series 3 in. Threaded Ductile Iron Open Right Resilient Wedge Gate Valve ✔️

Original price was: $107.64.Current price is: $75.35.

SKU: 3147442 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Open right direction

Thrust washers

Smooth waterway design

Sealing the lubrication chamber is a series of three O-ring stem seals. the O-rings help to isolate the lubrication chamber

Two thrust washers are used: One is located above and one below the thrust collar. the thrust washers help provide easy operation by minimizing operating torque

The body-to-bonnet and stuffing box cover seals are pressure-energized O-ring

ANSI Specifications	ANSI 372, ANSI 61, ANSI A21.10, ANSI B2.1, ANSI C515, ANSI C550
NSF Specifications	NSF 372, NSF 61
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	3 in
Valve Seat Material	Metal
Valve Port Opening	Full Port
Valve Operator	Operating Nut
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Open Right
Valve Body Material	Ductile Iron
UL Listed	Yes
Recommended Valve Application	Water
Pressure Class	125#
NSF Certified	Yes
ASME Specifications	ASME B16.1, ASME B16.4
Maximum Pressure	250 psig
Material	Ductile Iron
MSS Specifications	MSS SP-113, MSS SP-45
Length	7-19/50 in
FM Approved	Yes
End Connections	NPT x NPT
End Connection 2	NPT
End Connection 1	NPT
Collection	2500 Series
Coating	Fusion Bonded Epoxy
Application	Backflow Preventer, Fire, Irrigation, Potable Water, Sewage
AWWA Specifications	AWWA C-110, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-536, ASTM B-763
Waterworks Application	Water
