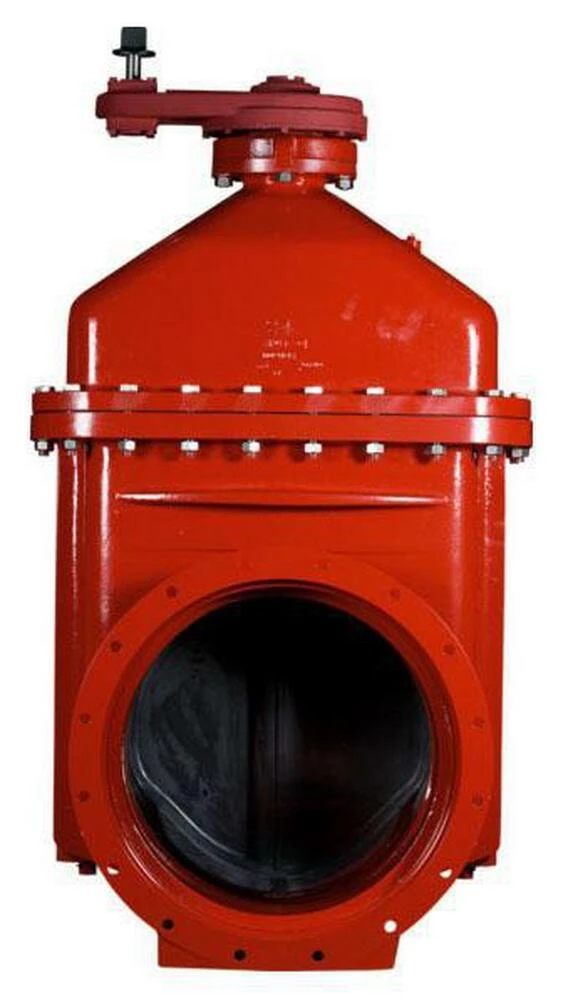

Name: Hot Sale 🥰 American Flow Control 2500 Series 36 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve with Spur Gear ⌛ | Cheap American Flow Control Store
SKU: 7233972
Price: 82.12 USD
Availability: InStock

Sale!

Original price was: $117.32.Current price is: $82.12.

SKU: 7233972 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Triple O-ring stem seal

Left open direction

Epoxy coating inside and out

Thrust washers

Lifting Devices

Zero leakage

Dual sealing body to bonnet gaskets

EPDM Encapsulated Ductile Iron Wedge with Polymer Guide Covers

Sealing the lubrication chamber is a series of O-Ring stem seals

ANSI Specifications	ANSI A21.11
NSF Specifications	NSF 372, NSF 61
Waterworks Application	Water
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	36 in
Valve Seat Material	Metal
Valve Port Opening	Valve Stem
Valve Operator	Gear
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Open Left
Valve Body Material	Ductile Iron
UL Listed	Yes
Recommended Valve Application	Water
Pressure Class	125#
NSF Certified	Yes
ASME Specifications	ASME B16.1
Maximum Pressure	250 psig
Material	Ductile Iron
MSS Specifications	MSS SP-113, MSS SP-45
Length	29-1/2 in
FM Approved	Yes
End Connections	Mechanical Joint
End Connection 2	Mechanical Joint
End Connection 1	Mechanical Joint
Ductile Iron Pipe Type	Ductile Iron Flanged Pipe
Collection	2500 Series
Coating	Fusion Bonded Epoxy
Application	Backflow Preventer, Fire, Irrigation, Potable Water, Sewage
AWWA Specifications	AWWA C-111, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-536
Weight	7440
