Sale!
Original price was: $156.43.$91.99Current price is: $91.99.
- Quality Products, Quality Service
- Fast reliable delivery options
- Buy quality, buy with us.
- The quality you expect, the service you deserve.
| ANSI Specifications | ANSI 372, ANSI 61, ANSI A21.10, ANSI B2.1, ANSI C111, ANSI C515, ANSI C550 |
|---|---|
| NSF Specifications | NSF 372, NSF 61 |
| Waterworks Application | Water |
| Valve Type | Resilient Wedge Gate Valve |
| Valve Stem | Non-rising |
| Valve Size | 6 in |
| Valve Seat Material | Metal |
| Valve Port Opening | Valve Stem |
| Valve Operator | Operating Nut |
| Valve Disc Material | Ductile Iron |
| Valve Bonnet Type | Bolted |
| Valve Body Style | Open Left |
| Valve Body Material | Ductile Iron |
| UL Listed | Yes |
| Recommended Valve Application | Backflow Prevention, Drinking Water, Fire Protection, Irrigation, Sewage |
| Pressure Class | 125# |
| NSF Certified | Yes |
| ASME Specifications | ASME B16.1 Class 125, ASME B16.4 |
| End Connection 2 | Mechanical Joint |
| ASTM Specifications | ASTM A-536, ASTM B-584, ASTM B-763, ASTM D-1785, ASTM D-2000, ASTM D-2241 |
| AWWA Specifications | AWWA C-110, AWWA C-111, AWWA C-515, AWWA C-550 |
| Coating | Fusion Bonded Epoxy |
| Collection | 2500 Series |
| Ductile Iron Pipe Type | Ductile Iron Flanged Pipe |
| End Connection 1 | Flanged |
| End Connections | Flanged x Mechanical Joint |
| Maximum Pressure | 500 psig |
| FM Approved | Yes |
| High Pressure | 250 |
| Length | 10-1/2 in |
| MSS Specifications | MSS SP-113, MSS SP-45 |
| Material | Ductile Iron, Stainless Steel |
| Material Type | 316 |
| Weight | 108 |

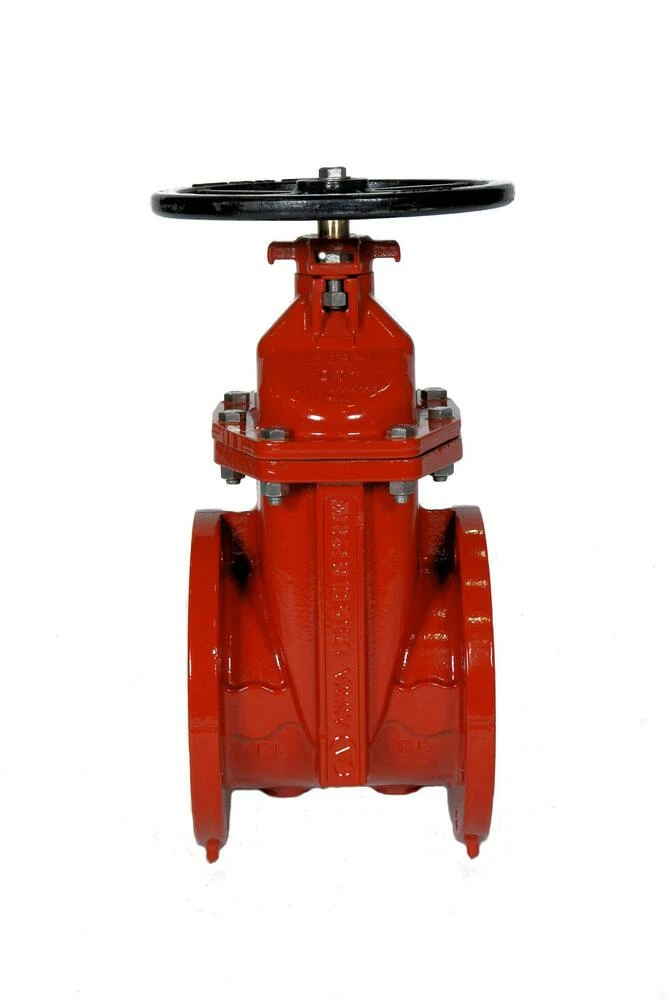

Be the first to review “Best deal 🧨 American Flow Control 2500 Series 6 in. Flanged x Mechanical Joint Ductile Iron Open Left 316 Resilient Wedge Gate Valve 😉”
