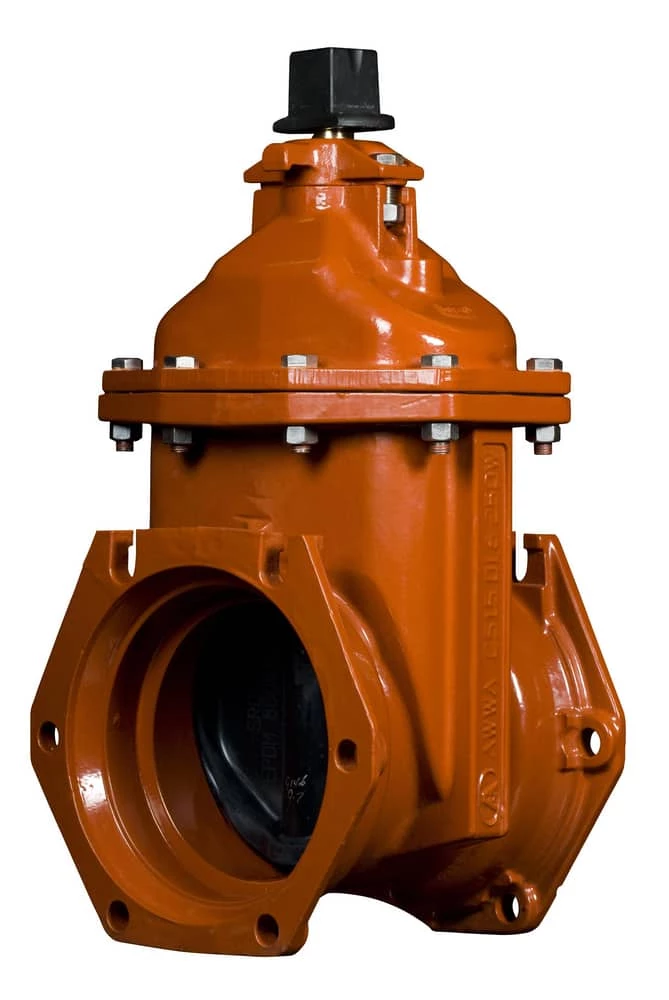

New 👏 American Flow Control 2500 Series 8 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve ❤️

Original price was: $194.33.Current price is: $90.99.

SKU: 3784012 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Fusion-bonded epoxy coating complies with ANSI/AWWA C550

4″–12″ valves have a fully rubber-encapsulated wedge

Triple O-ring stem seals

Thrust washers

ANSI Specifications	ANSI 372, ANSI 61, ANSI A21.10, ANSI C110, ANSI C515, ANSI C550
NSF Specifications	NSF 372, NSF 61
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	8 in
Valve Seat Material	Metal
Valve Port Opening	Valve Stem
Valve Operator	Operating Nut
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Open Left
UL Listed	Yes
Recommended Valve Application	Fire Protection, Potable Water, Sewage
Pressure Class	125#
NSF Certified	Yes
ASME Specifications	ASME B16.1, ASME B16.4
Maximum Pressure	250 psig
Material	Ductile Iron
MSS Specifications	MSS SP-113, MSS SP-45
Length	11-1/2 in
FM Approved	Yes
End Connections	Mechanical Joint x Mechanical Joint
End Connection 2	Mechanical Joint
End Connection 1	Mechanical Joint
Ductile Iron Pipe Type	Ductile Iron Mechanical Joint Pipe
Collection	2500 Series
Coating	Fusion Bonded Epoxy
AWWA Specifications	AWWA A-21.10, AWWA C-110, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-126, ASTM A-536
Waterworks Application	Water
