Name: Best deal 😍 American Flow Control 2500 Series 8 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve (Less Accessories) ✔️ | Cheap American Flow Control Store
SKU: 497089
Price: 71.14 USD
Availability: InStock

Sale!

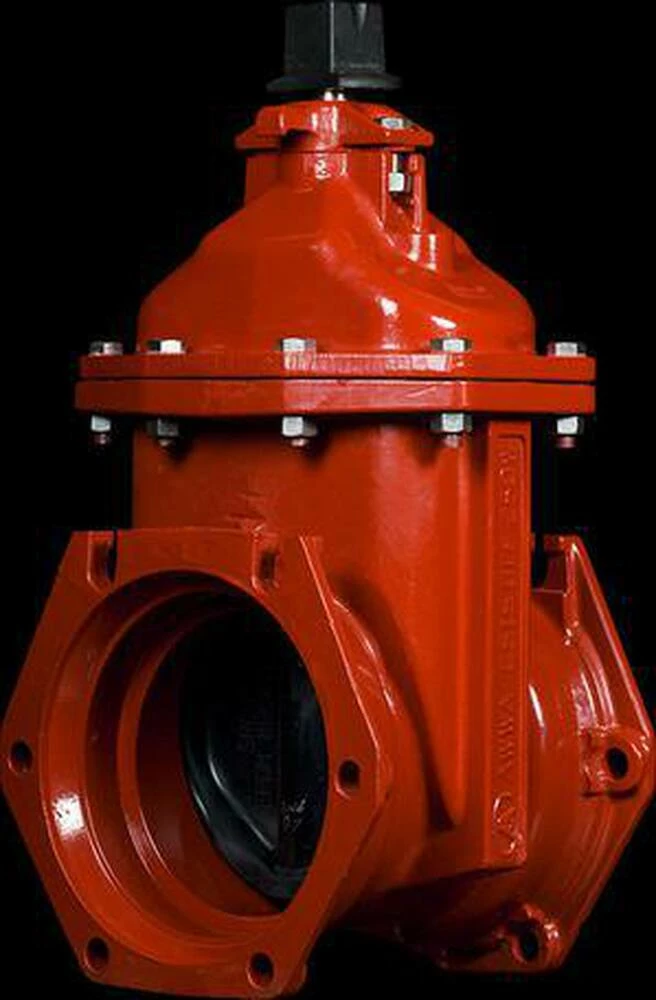

Best deal 😍 American Flow Control 2500 Series 8 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve (Less Accessories) ✔️

Original price was: $101.63.Current price is: $71.14.

SKU: 497089 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Products sold in select areas only. Please contact your local branch for availability in your area

Fusion-bonded epoxy coating complies with ANSI/AWWA C550

4″–12″ valves have a fully rubber-encapsulated wedge

Triple O-ring stem seals

Thrust washer

ANSI Specifications	ANSI 372, ANSI 61, ANSI A21.10, ANSI B2.1, ANSI C515, ANSI C550
NSF Certified	Yes
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	8 in
Valve Seat Material	Metal
Valve Port Opening	Valve Stem
Valve Operator	Operating Nut
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bolted
Valve Body Style	Open Left
UL Listed	Yes
Pressure Class	125#
NSF Specifications	NSF 372, NSF 61
Maximum Pressure	250 psig
ASME Specifications	ASME B16.1, ASME B16.4
Material	Ductile Iron
MSS Specifications	MSS SP-113, MSS SP-45
Length	11-1/2 in
FM Approved	Yes
End Connections	Mechanical Joint x Mechanical Joint
End Connection 2	Mechanical Joint
End Connection 1	Mechanical Joint
Ductile Iron Pipe Type	Ductile Iron Mechanical Joint Pipe
Collection	2500 Series
Coating	Fusion Bonded Epoxy
Application	Fire, Irrigation, Potable Water, Sewage
AWWA Specifications	AWWA C-110, AWWA C-111, AWWA C-515, AWWA C-550
ASTM Specifications	ASTM A-126, ASTM A-536, ASTM D-1785, ASTM D-2000, ASTM D-2241
Waterworks Application	Water
