| ANSI Specifications | ANSI 372, ANSI 61, ANSI A21.10, ANSI B2.1, ANSI C515, ANSI C550 |
|---|---|
| Maximum Pressure | 250 psig |
| Valve Stem | Non-rising |
| Valve Size | 8 in |
| Valve Seat Material | Metal |
| Valve Port Opening | Valve Stem |
| Valve Operator | Operating Nut |
| Valve Disc Material | Ductile Iron |
| Valve Bonnet Type | Bolted |
| Valve Body Style | Open Left |
| UL Listed | Yes |
| Recommended Valve Application | Water |
| NSF Specifications | NSF 372, NSF 61 |
| NSF Certified | Yes |
| Material | Ductile Iron |
| ASME Specifications | ASME B16.1, ASME B16.4 |
| MSS Specifications | MSS SP-113, MSS SP-45 |
| Length | 16-11/50 in |
| FM Approved | Yes |
| End Connections | Restraint Joint x Restraint Joint |
| End Connection 2 | Restraint Joint |
| End Connection 1 | Restraint Joint |
| Ductile Iron Pipe Type | Ductile Iron Restrained Joint Pipe |
| Collection | Alphaβ’ 2500 Series |
| Coating | Fusion Bonded Epoxy |
| Application | Fire, Irrigation, Potable Water, Sewage |
| AWWA Specifications | AWWA C-110, AWWA C-111, AWWA C-515, AWWA C-550 |
| ASTM Specifications | ASTM A-536, ASTM D-1785, ASTM D-2000, ASTM D-2241 |
| Valve Type | Resilient Wedge Gate Valve |
$111.17 Original price was: $111.17.$77.82Current price is: $77.82.
- Quality Products, Quality Service
- Fast reliable delivery options
- Buy quality, buy with us.
- The quality you expect, the service you deserve.

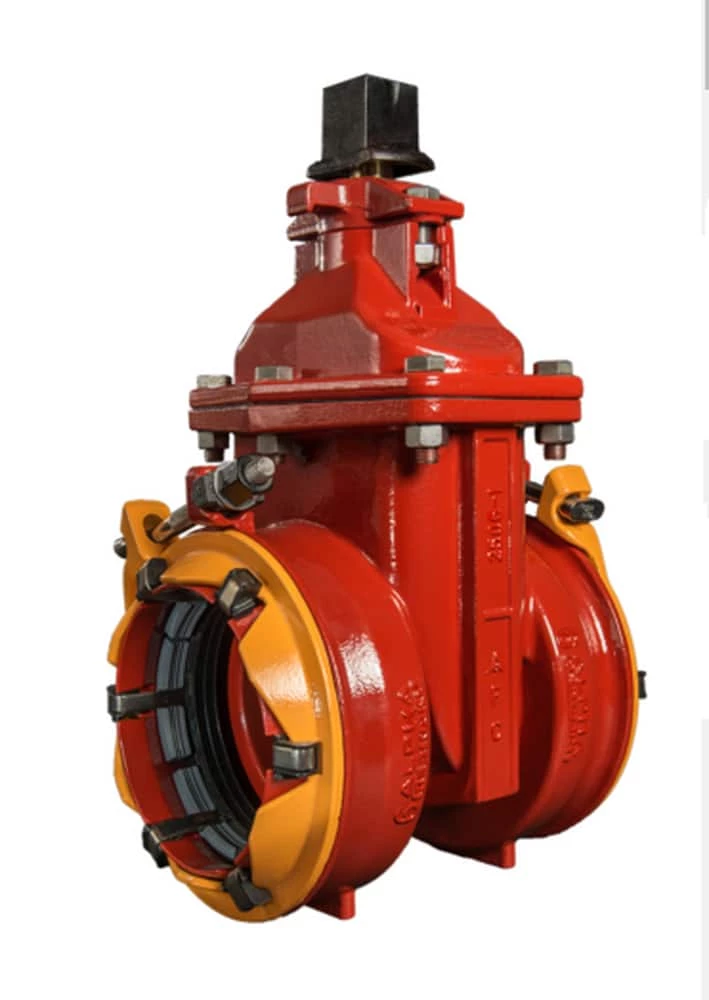

Be the first to review “Buy βοΈ American Flow Control Alphaβ’ 2500 Series 8 in. Restraint Joint Ductile Iron Open Left Resilient Wedge Gate Valve π” Cancel reply
