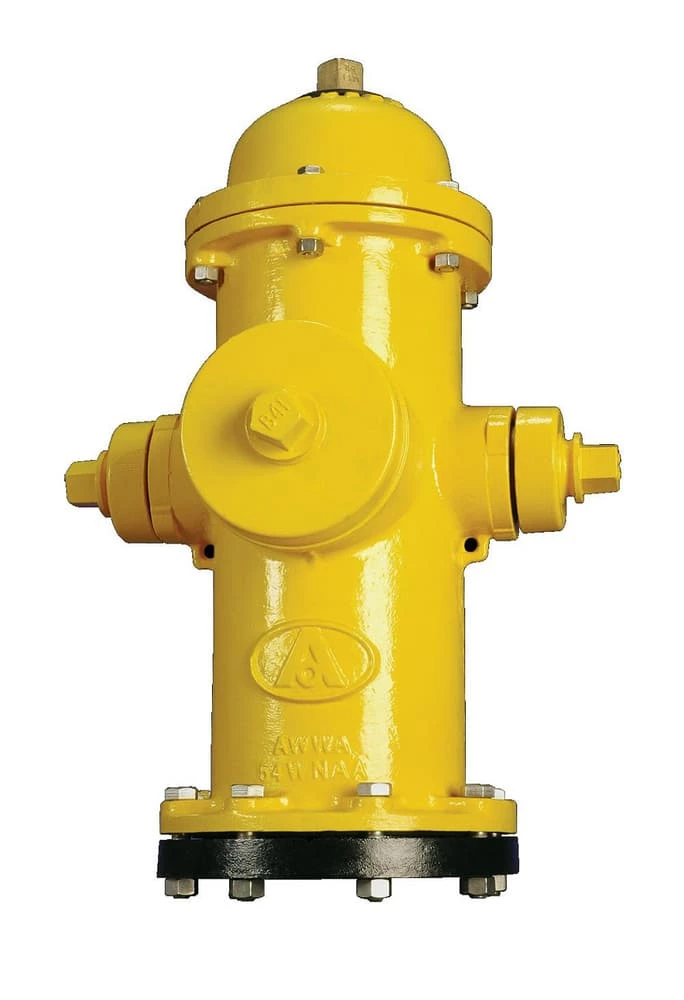

Top 10 😀 American Flow Control American Darling® B-62-B 5 ft. Mechanical Joint Assembled Fire Hydrant 🔔

Original price was: $110.61.Current price is: $77.43.

SKU: 4386324 Categories: Assembled Fire Hydrants, Fire Hydrants, Parts & Accessories

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Size and shape of operating nut and nut on cap, threading on nozzles and caps and the direction of opening made to specification

Valve top, valve bottom and base coated with fusion bonded epoxy coating

Top travel stop nut provides a positive limit to main rod travel

Epoxy primer and polyurethane coating system upper barrel is provided with an E-Coat primer and a two-part polyurethane top coat for improved durability, color and gloss retention

Stainless steel hydrant spring assures quick drain closure and allows throttling

Drain lever rugged bronze lever performs dual function as carrier for drain lever pads and as wrench to remove working part

Hydrant seat is constructed of bronze, design includes a near-vertical machined seating surface with two drain ports

Base nut and bolts hydrant is provided with stainless steel fasteners below grade

Base spherical shaped base has no projections or cavities to obstruct flow

Open left valve

ASTM Specifications	ASTM A-307
Maximum Pressure	200 psig
Valve Seat Material	Bronze
Valve Body Material	Ductile Iron
UL Listed	Yes
Recommended Valve Application	Water
NSF Specifications	NSF 372, NSF 61
NSF Certified	Yes
Height	28-17/27 in
AWWA Specifications	AWWA C-502
FM Approved	Yes
End Connections	Mechanical Joint x Mechanical Joint
End Connection 2	Mechanical Joint
End Connection 1	Mechanical Joint
Depth of Trench	5 ft
Collection	American Darling® B-62-B
Valve Size	5-1/4 in
