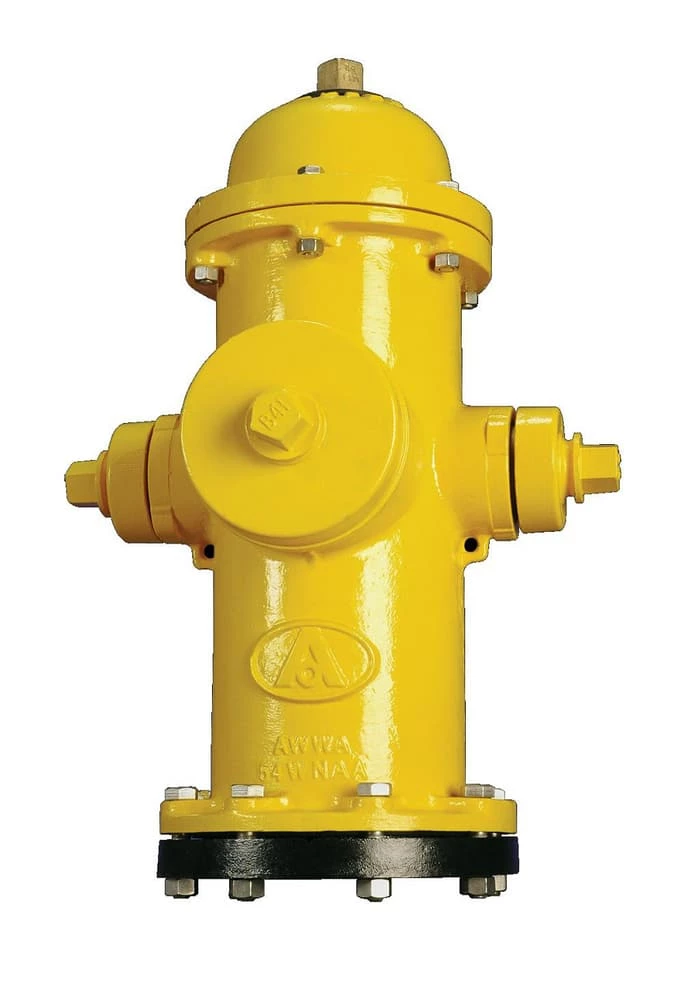

Name: Cheapest 💯 American Flow Control American Darling® B-84-B 7 ft. Mechanical Joint 6 in. Assembled Fire Hydrant 🤩 | Cheap American Flow Control Store
SKU: 7621003
Price: 82.31 USD
Availability: InStock

Sale!

Cheapest 💯 American Flow Control American Darling® B-84-B 7 ft. Mechanical Joint 6 in. Assembled Fire Hydrant 🤩

Original price was: $117.58.Current price is: $82.31.

SKU: 7621003 Categories: Assembled Fire Hydrants, Fire Hydrants, Parts & Accessories Tag: Bronze, Ductile Iron, Grey Iron, Stainless Steel

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

The main valve closure shall be of the compression type

Traffic feature must be designed for easy 360 rotation of nozzle section during field installation

The main valve opening shall not be less than 5-1/4 in. and be designed so that removal of all working parts can be accomplished without excavating

The hydrant valve shall be constructed of EPDM rubber and have a vertical taper of 20° or less

The bronze seat shall be threaded into an all bronze drain ring

The draining system of the hydrant shall be bronze and positively activated by the main operating rod

Hydrant barrels shall be made of ductile iron. Nozzles shall be retained by collars Threaded-in nozzles and nozzles using set screws, are not allowed

Hydrant upper barrel shall be factory coated with electrode position (E-coat) epoxy primer and catalyzed two part polyurethane top coating. Base shall be coated with fusion bonded epoxy. All bolting below grade shall be 304 stainless steel

Friction loss not to exceed 3.0 psig at 1000 gpm through 4-1/2 in. pumper nozzle

Hydrants shall be equal to the 5-1/4 in. American-Darling B-84-B-5 by AMERICAN Flow Control fire hydrant

ANSI Specifications	ANSI 372, ANSI 61, ANSI C502, ANSI C600
Height	30-1/2 in
Weight	475
Valve Size	5-1/4 in
Valve Seat Material	Bronze
Valve Body Style	Open Left
UL Listed	Yes
Recommended Valve Application	Fire, Water
NSF Specifications	NSF 372, NSF 61
NSF Certified	Yes
Maximum Pressure	500 psig
Material	Bronze, Ductile Iron, Grey Iron, Stainless Steel
High Pressure	250
Flow Rate	1000 gpm
ASTM Specifications	ASTM D-1785, ASTM D-2241
Fitting Sizes	6 in
Fitting Size 2	6 in
Fitting Size 1	6 in
FM Approved	Yes
End Connections	Mechanical Joint
End Connection 2	Mechanical Joint
End Connection 1	Mechanical Joint
Depth of Trench	7 ft
Collection	American Darling® B-84-B
Coating	Epoxy, Fusion Bonded Epoxy, Polyurethane
AWWA Specifications	AWWA C-151, AWWA C-502, AWWA C-600, AWWA C-900, AWWA C-906, AWWA M-17
Width	10-13/100 in
