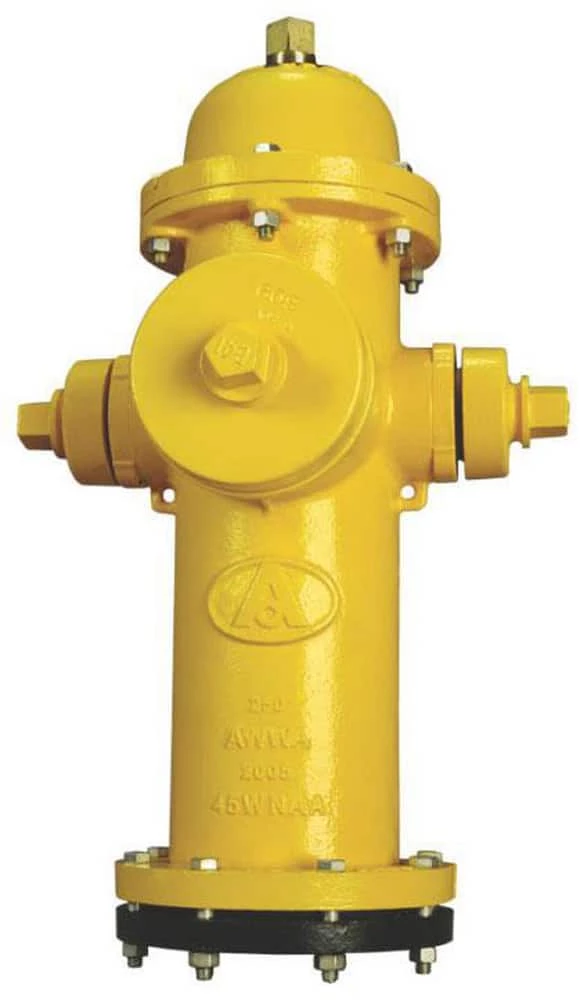

Best Pirce ⌛ American Flow Control American-Darling® Mark 73 4 ft. Mechanical Joint Assembled Fire Hydrant ⭐

Original price was: $235.11.Current price is: $95.99.

SKU: 497313 Categories: Assembled Fire Hydrants, Fire Hydrants, Parts & Accessories

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Size and shape of operating nut and nut on cap, threading on nozzles and caps and the direction of opening made to specification

Top travel stop nut provides a positive limit to main rod travel

Epoxy primer and polyurethane coating system upper barrel is provided with an e-coat primer and a two-part polyurethane top coat for improved durability, color and gloss retention

Stainless steel hydrant spring assures quick drain closure and allows throttling

Drain lever rugged bronze lever performs dual function as carrier for drain lever pads and as wrench to remove working part

Hydrant seat is constructed of bronze, design includes a near-vertical machined seating surface with two drain ports

Base nut and bolts stainless steel for corrosion resistance

Hydrant seat constructed of bronze, with near-vertical machined seating surface with two drain ports

Lower barrel the ductile iron lower barrel provides extra strength against traffic impact damage

Open left valve

ANSI Specifications	ANSI 372, ANSI 61, ANSI C502
High Pressure	250
Valve Size	4-1/2 in
Valve Seat Material	Bronze
Valve Body Material	Ductile Iron
UL Listed	UL 246
Recommended Valve Application	Water
NSF Specifications	NSF 372, NSF 61
NSF Certified	Yes
Maximum Pressure	500 psi
Height	30-1/2 in
ASTM Specifications	ASTM 2565-99, ASTM 523-89, ASTM B-117-02, ASTM D-2244-02, ASTM D-3359-02
GSA Approved	No
FM Approved	Yes
End Connections	Mechanical Joint x Mechanical Joint
End Connection 2	Mechanical Joint
End Connection 1	Mechanical Joint
Depth of Trench	4 ft
Collection	American-Darling® Mark 73
Coating	Fusion Bonded Epoxy, Polyurethane
AWWA Specifications	AWWA C-502
Weight	355
