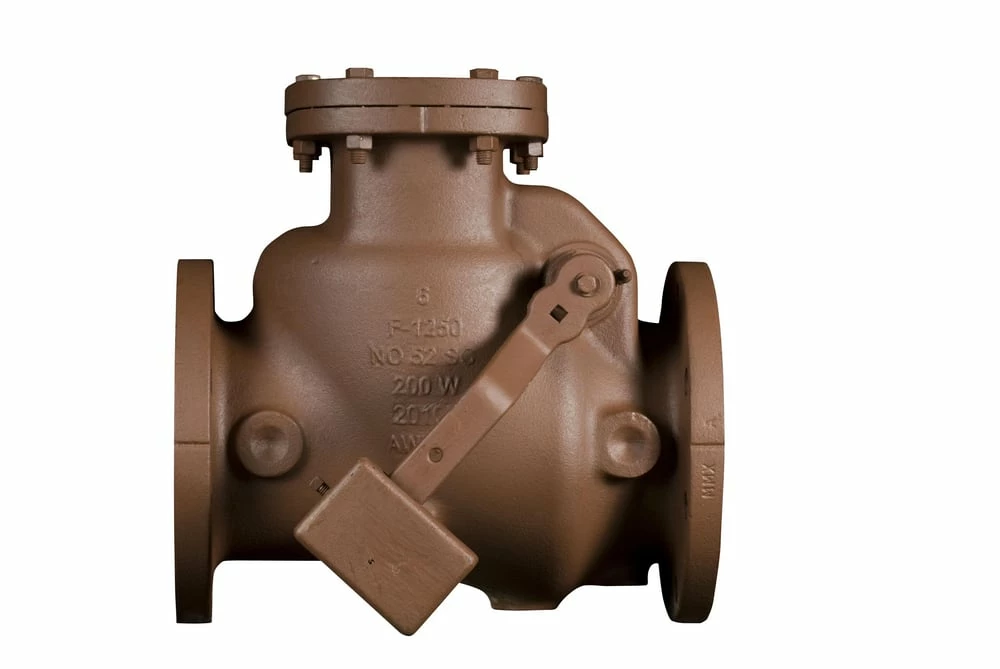

Budget ❤️ American Flow Control Series 52SC 6 in. Cast Iron Flanged Check Valve 🔔

Original price was: $186.29.Current price is: $96.99.

SKU: 90136 Category: Check Valves Tag: Cast Iron

Quality Products, Quality Service
Fast reliable delivery options
Buy quality, buy with us.
The quality you expect, the service you deserve.

Stainless steel clapper arm shafts

Full-diameter waterway

Solid ductile iron clapper arm

Bronze retaining plug

The clapper arm shaft hole and disc stud hole are bushed with bronze for wear and corrosion resistance

Clapper arm shafts are made of high tensile strength, corrosion-resistant stainless steel

ANSI Specifications	ANSI 372, ANSI 61, ANSI C110, ANSI C508, ANSI C550
NSF Certified	Yes
Valve Type	Check Valve
Valve Size	6 in
Valve Seat Material	Bronze
Valve Port Opening	Full Port
Valve Operator	Lever Handle
Valve Disc Material	Bronze
Valve Body Style	Swing
UL Listed	No
Pressure Class	125#
NSF Specifications	NSF 372, NSF 61
Material	Cast Iron
ASME Specifications	ASME B16.1
Length	16 in
IAPMO Listed	No
High Pressure	200
FM Approved	No
End Connections	Flanged x Flanged
End Connection 2	Flanged
End Connection 1	Flanged
Collection	Series 52SC
Clean Bagged	No
AWWA Specifications	AWWA C-110, AWWA C-508, AWWA C-550
ASTM Specifications	ASTM A-126 Class B, ASTM A-536 Grade 65-45-12
Weight	167
